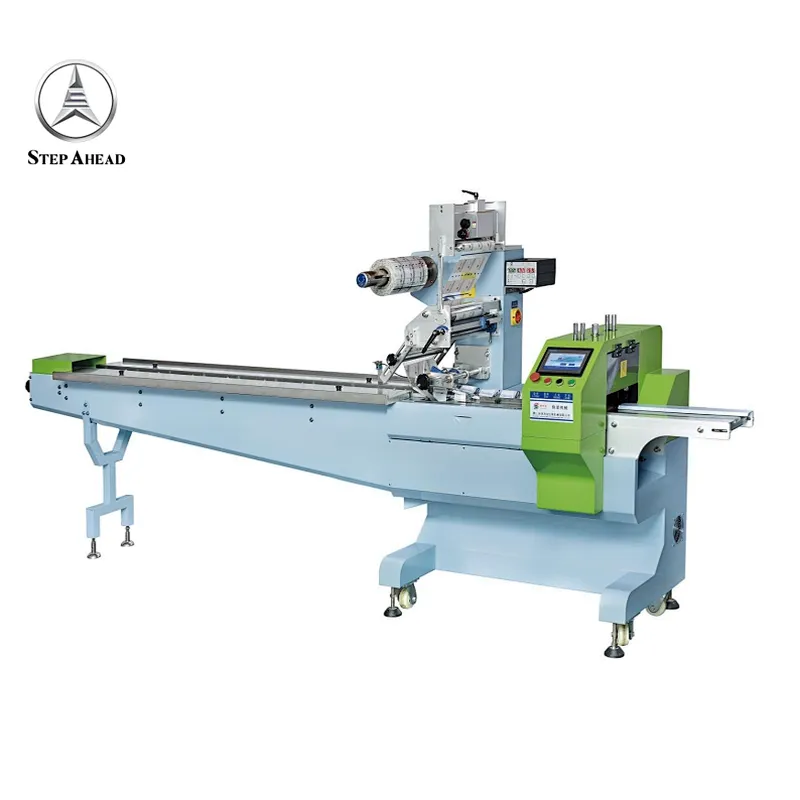

Suggested packaging material：Many kinds of composite film.
Suggested film thickness: 25-80μm Technical Specification:
Output | |
Size Range | |
Package cut-off length | 50-6000mm |
Product width | Max.190mm |
Product height | Max.55mm |
Packaging Material Reel | |
Reel diameter | ≤350mm |
Core diameter | ≤75mm |
Packaging material width | Max.350mm |
Connections | |
Voltage | 220V,50HZ |
Power usage | 3.8KW |
Machine weight | 600kg |
Machine dimensions | L3900mm*W850mm*H1500mm |
Blade cut type | Rotary cutter |
Motor configuration | Full servo |
Optional Device | date printer, auto feeder, gas charger, etc. |

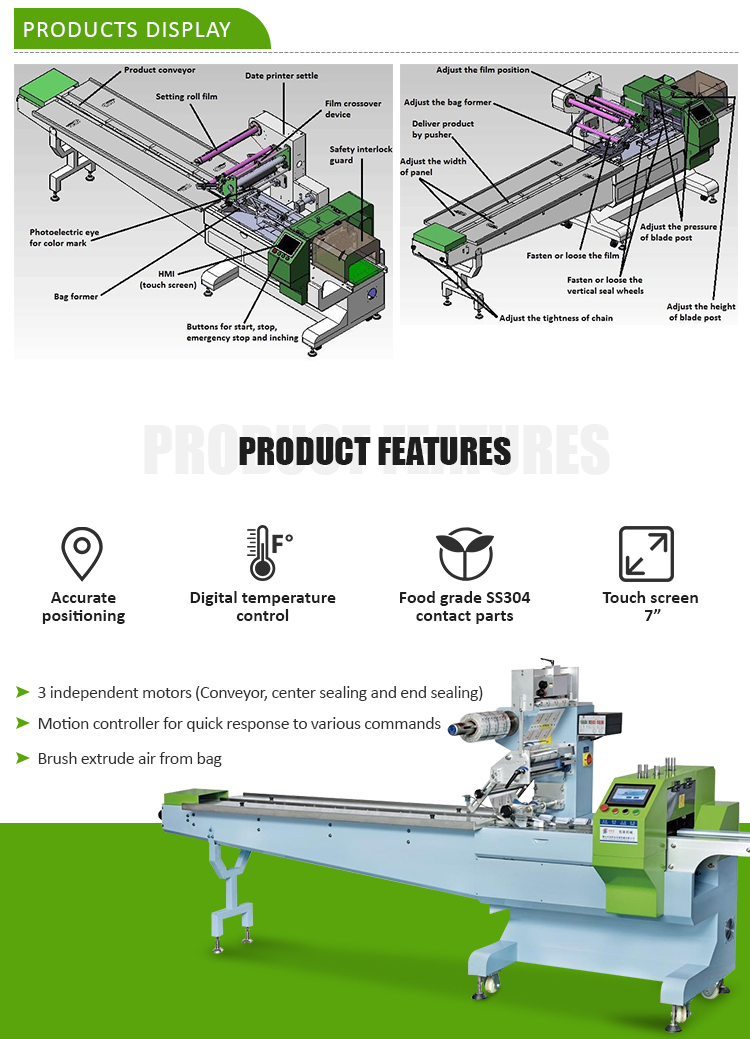

Standard features:
- 3 independent motors (Conveyor, center sealing and end sealing)
- Motion controller for quick response to various commands
- Accurate positioning
- Digital temperature control
- Food grade SS304 contact parts

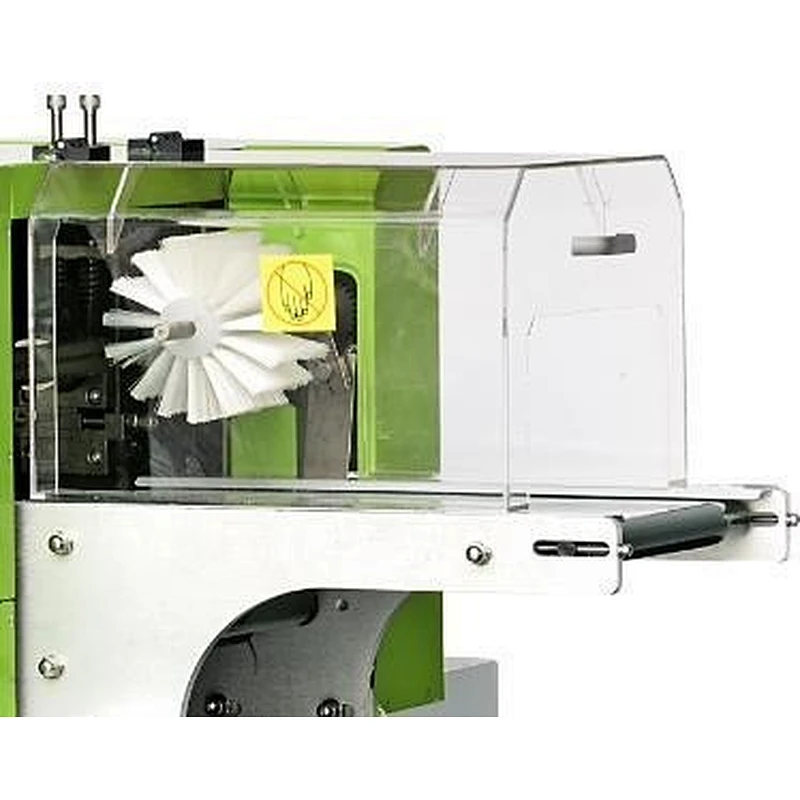

- Brush extrude air from bag
- Touch screen 7”

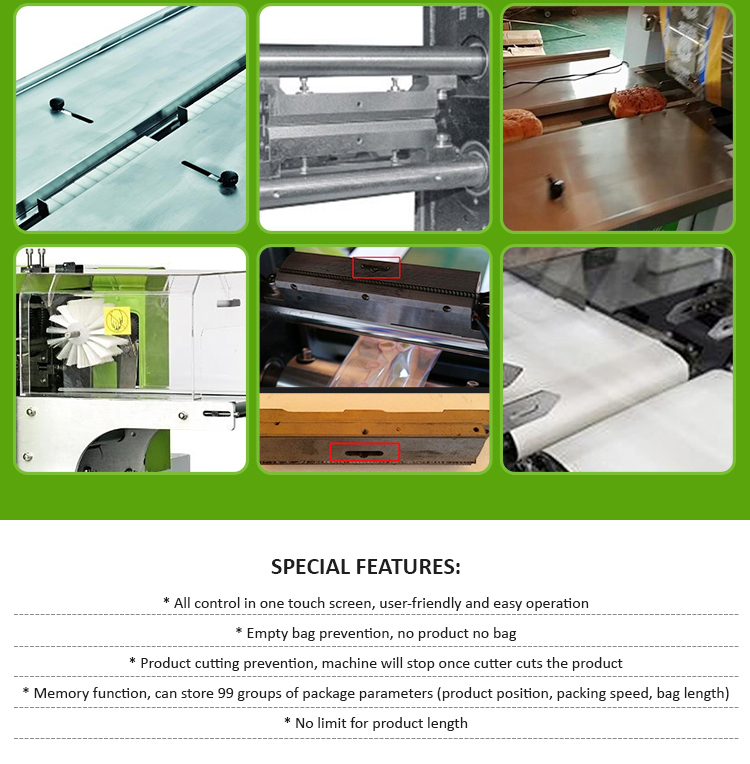

Special features:
- All control in one touch screen, user-friendly and easy operation
- Empty bag prevention, no product no bag
- Product cutting prevention, machine will stop once cutter cuts the product
- Memory function, can store 99 groups of package parameters (product position, packing speed, bag length)
- No limit for product length
