1. Material rack: to ensure the tension of the raw materials, so that the raw materials will not wrinkle during use
2. Nose line part: cylinder and ultrasonic welding, fixed on the nose line fabric according to the required length
3. Appearance type parts: mold ultrasonic, basic pattern welding
4. Folding forming: fabric folding
5. External cutting part: cutting, embossing forming, the initial shape of the mask is completed
6. Rotating parts: turn the mask over and prepare the ear straps
7. Separate part: increase output by rationalizing materials
8. Ear wire welding: Use ultrasonic to fix the mask on the semi-finished mask to complete the production of the mask
9. Collection: Collect finished products (this product does not include packaging process)
2. Nose line part: cylinder and ultrasonic welding, fixed on the nose line fabric according to the required length
3. Appearance type parts: mold ultrasonic, basic pattern welding
4. Folding forming: fabric folding
5. External cutting part: cutting, embossing forming, the initial shape of the mask is completed
6. Rotating parts: turn the mask over and prepare the ear straps
7. Separate part: increase output by rationalizing materials
8. Ear wire welding: Use ultrasonic to fix the mask on the semi-finished mask to complete the production of the mask
9. Collection: Collect finished products (this product does not include packaging process)

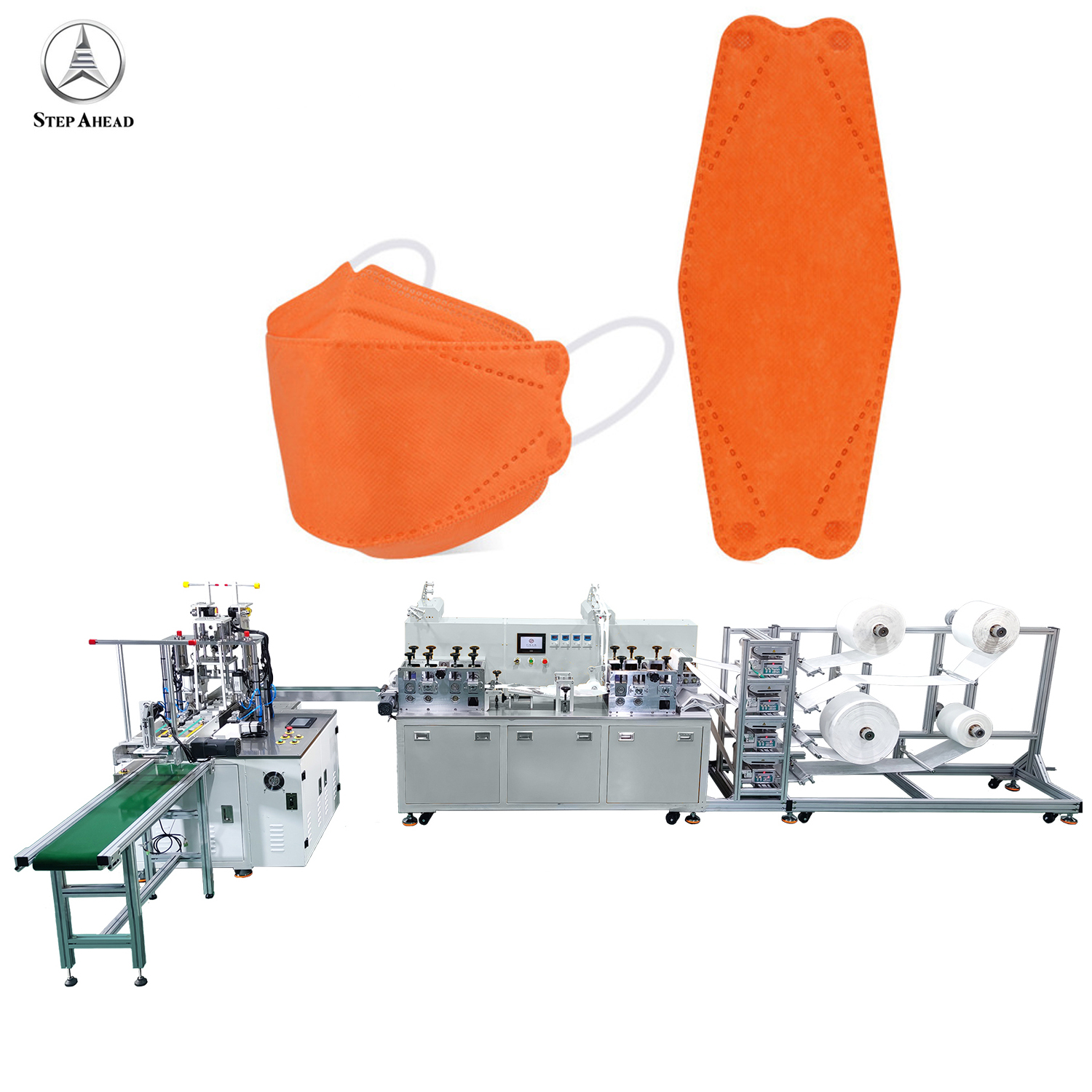

| Product model | STEP-YX800 |
| Product size | commercial large folding masks, children's masks, according to the design drawings of the knife mold design changes; |
| Language support | Chinese, English, Korean, Japanese |
| Raw material specifications | 240mm-260mm |
| Production capacity | 100-130Pcs/min (depending on the quality of raw materials) |
| Qualified rate | 98% |
| Power specification | 220VAC, 50Hz / 60Hz, 34A, two-phase power |
| Air specification | 0.50.7Mpa (recommended compressor standard 20P / 15KW) |
| power | 20kw |
| Equipment size | 10000mm(L)*2500mm(W)*2000mm(H) |
| Equipment weight | ≤2500kg |
